Microsoft Access Tips for Serious Users

Provided by Allen Browne, September 2005.  Last updated: April 2010.


Locking bound controls

It is very easy to overwrite data accidentally in Access. Setting a form's AllowEdits property prevents that, but also locks any unbound controls you want to use for filtering or navigation. This solution locks only the bound controls on a form and handles its subforms as well.

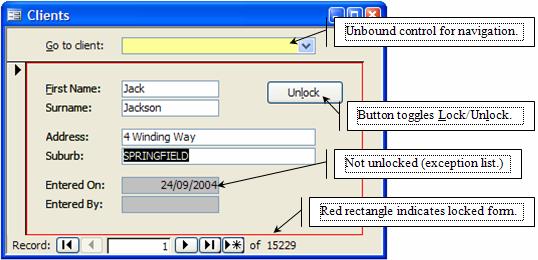

locked form example

First, the code saves any edits in progress, so the user is not stuck with a half-edited form. Next it loops through all controls on the form, setting the Locked property of each one unless the control:

If it finds a subform, the function calls itself recursively. Nested subforms are therefore handled to any depth. If you do not want your subform locked, name it in the exception list.

The form's AllowDeletions property is toggled as well. The code changes the text on the command button to indicate whether clicking again will lock or unlock.

To help the user remember they must unlock the form to edit, add a rectangle named rctLock around the edge of your form. The code shows this rectangle when the form is locked, and hides it when unlocked.

Using with your forms

To use the code:

  1. Open a new module. In Access 95 - 2003, click the Modules tab of the Database window, and click New. In Access 2007 and later, click Module (rightmost icon) on the Create ribbon. Access opens a code module.
  2. Paste in the code from the end of this article.
    Save the module with a name such as ajbLockBound.
  3. (Optional) Add a red rectangle to your form to indicate it is locked. Name it rctLock.
  4. To initialize the form so it comes up locked, set the On Load property of your form to:
        =LockBoundControls([Form],True)
  5. Add a command button to your form. Name it cmdLock.
    Set its On Click property to [Event Procedure].
    Click the Build button (...) beside this.
    Set up the code like this:
        Private Sub cmdLock_Click()
            Dim bLock As Boolean
            bLock = IIf(Me.cmdLock.Caption = "&Lock", True, False)
            Call LockBoundControls(Me, bLock)
        End Sub
  6. (Optional) Add the names of any controls you do not want unlocked at steps 3 and 4. For example, to avoid unlocking controls EnteredOn and EnteredBy in the screenshot above, you would use:
            Call LockBoundControls(Me, bLock, "EnteredOn", "EnteredBy")

Note that if your form has any disabled controls, changing their Locked property affects the way they look. To avoid this, add them to the exception list.

The code

Public Function LockBoundControls(frm As Form, bLock As Boolean, ParamArray avarExceptionList())
On Error GoTo Err_Handler
    'Purpose:   Lock the bound controls and prevent deletes on the form any its subforms.
    'Arguments  frm = the form to be locked
    '           bLock = True to lock, False to unlock.
    '           avarExceptionList: Names of the controls NOT to lock (variant array of strings).
    'Usage:     Call LockBoundControls(Me. True)
    Dim ctl As Control      'Each control on the form
    Dim lngI As Long        'Loop controller.
    Dim bSkip As Boolean

    'Save any edits.
    If frm.Dirty Then
        frm.Dirty = False
    End If
    'Block deletions.
    frm.AllowDeletions = Not bLock

    For Each ctl In frm.Controls
        Select Case ctl.ControlType
        Case acTextBox, acComboBox, acListBox, acOptionGroup, acCheckBox, acOptionButton, acToggleButton
            'Lock/unlock these controls if bound to fields.
            bSkip = False
            For lngI = LBound(avarExceptionList) To UBound(avarExceptionList)
                If avarExceptionList(lngI) = ctl.Name Then
                    bSkip = True
                    Exit For
                End If
            Next
            If Not bSkip Then
                If HasProperty(ctl, "ControlSource") Then
                    If Len(ctl.ControlSource) > 0 And Not ctl.ControlSource Like "=*" Then
                        If ctl.Locked <> bLock Then
                            ctl.Locked = bLock
                        End If
                    End If
                End If
            End If

        Case acSubform
            'Recursive call to handle all subforms.
            bSkip = False
            For lngI = LBound(avarExceptionList) To UBound(avarExceptionList)
                If avarExceptionList(lngI) = ctl.Name Then
                    bSkip = True
                    Exit For
                End If
            Next
            If Not bSkip Then
                If Len(Nz(ctl.SourceObject, vbNullString)) > 0 Then
                    ctl.Form.AllowDeletions = Not bLock
                    ctl.Form.AllowAdditions = Not bLock
                    Call LockBoundControls(ctl.Form, bLock)
                End If
            End If

        Case acLabel, acLine, acRectangle, acCommandButton, acTabCtl, acPage, acPageBreak, acImage, acObjectFrame
            'Do nothing

        Case Else
            'Includes acBoundObjectFrame, acCustomControl
            Debug.Print ctl.Name & " not handled " & Now()
        End Select
    Next

    'Set the visual indicators on the form.
    On Error Resume Next
    frm.cmdLock.Caption = IIf(bLock, "Un&lock", "&Lock")
    frm!rctLock.Visible = bLock


Exit_Handler:
    Set ctl = Nothing
    Exit Function

Err_Handler:
    MsgBox "Error " & Err.Number & " - " & Err.Description
    Resume Exit_Handler
End Function

Public Function HasProperty(obj As Object, strPropName As String) As Boolean
    'Purpose:   Return true if the object has the property.
    Dim varDummy As Variant
    On Error Resume Next
    varDummy = obj.Properties(strPropName)
    HasProperty = (Err.Number = 0)
End Function
